Answer first: This 4 m diameter × 1 m high circular hanging banner weighed approximately 10 kg. Two people completed the tool-free ground assembly in about 30 minutes. After the frame and printed fabric were ready, venue-approved professional riggers were required to inspect the suspension points and lift the display overhead.

Project overview

This case documents the packing and ground assembly of a QuicklyShow circular hanging banner for a trade show booth. The lightweight aluminum tubes were connected in sequence, the dye-sublimated stretch-fabric graphic was pulled over the completed frame, and the zipper was closed to create a smooth branded surface.

The 4 m × 1 m dimensions shown here describe this specific project, not a fixed product size. Both the size and shape can be customized to match the booth footprint, brand design, sightlines and venue regulations.

Case specifications

• Case size: 4 m diameter × 1 m high
• Approximate weight: 10 kg
• Ground assembly: 2 people, approximately 30 minutes
• Tools required: None for frame and graphic assembly
• Frame: Reusable lightweight aluminum tube structure
• Graphic: Stretch fabric with dye-sublimation printing
• Graphic closure: Zipper closure after the fabric is pulled over the frame
• Included: Standard hanging and suspension accessories
• Customization: Size and shape are customizable
• Overhead rigging: Must be completed by venue-approved professional riggers

How the circular hanging banner was assembled

1. Unpack the frame, graphic and accessories

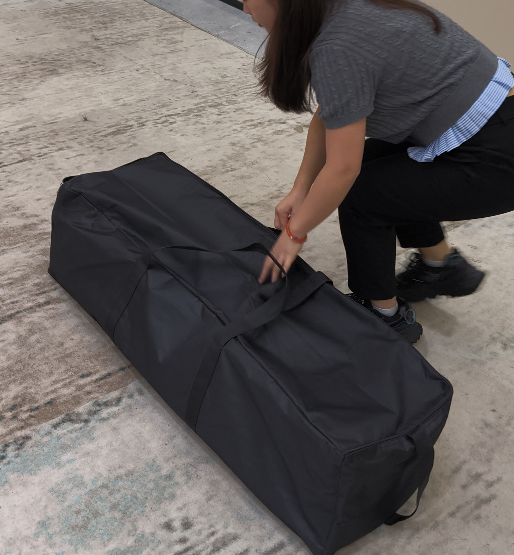

The aluminum tube sections, printed fabric graphic and standard suspension accessories were packed in a reusable black carry bag. Before assembly, the team checked that the labeled frame sections and connecting parts were complete and placed the fabric on a clean floor.

2. Connect the aluminum tubes in sequence

Two installers matched and connected the aluminum tube sections in the correct order. Each section was pressed into place until the frame formed a complete circular top and bottom ring with vertical supports between them. No additional tools were required for this ground-level assembly.

Before adding the graphic, the installers checked that every joint was fully seated and that the circular frame was even. A misaligned connection can create uneven fabric tension later.

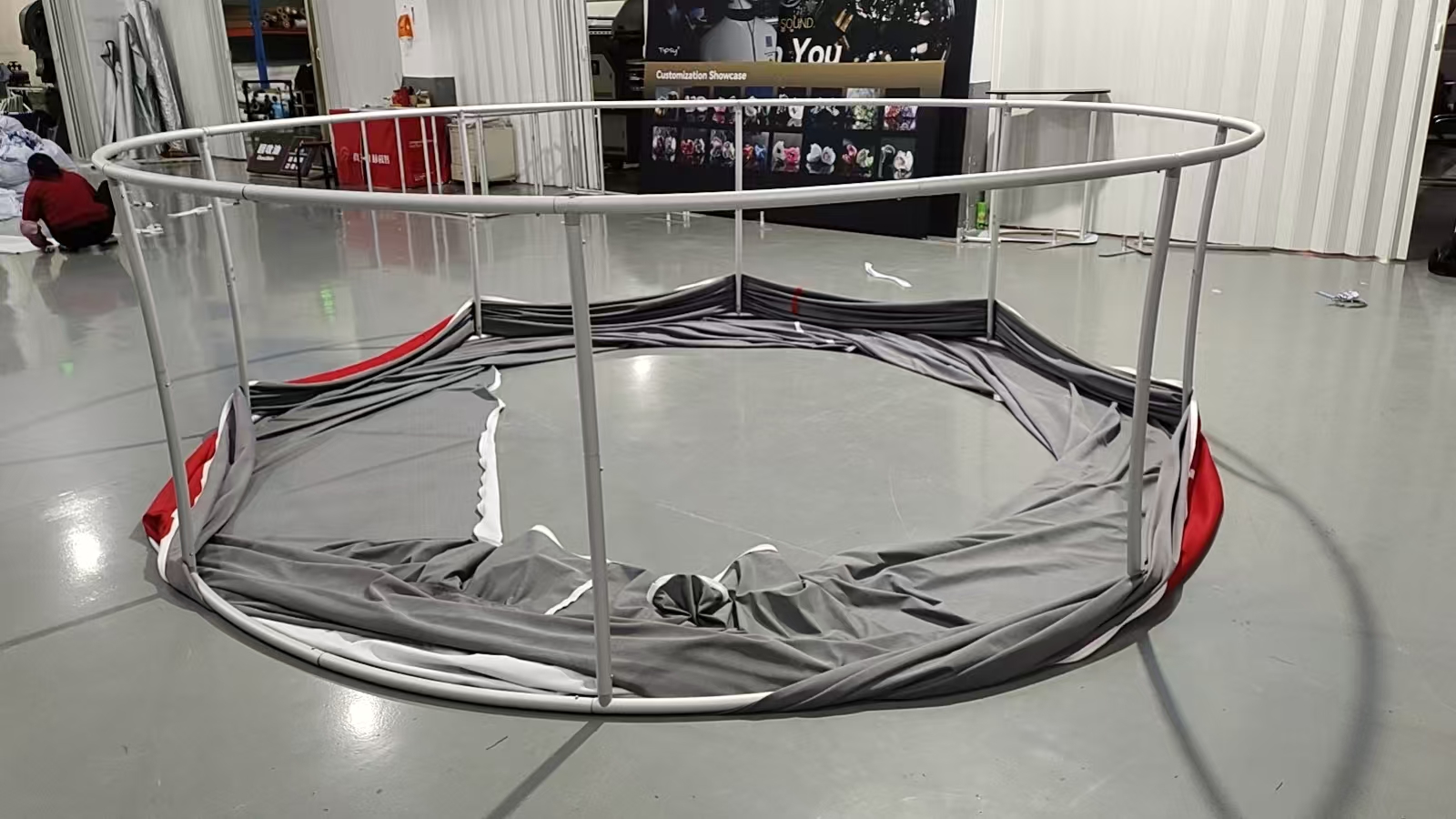

3. Pull the stretch-fabric graphic over the frame

After the frame was complete, the team lifted the dye-sublimated stretch-fabric graphic around the structure. They aligned the logo and main message before pulling the fabric evenly around the full circumference.

4. Close the zipper and check graphic tension

The zipper was closed only after the printed surface was correctly positioned. The installers worked gradually around the frame to avoid twisting the graphic. Once closed, the stretch fabric created a smooth, continuous display surface with strong visibility from multiple directions.

5. Hand the completed structure to professional riggers

The exhibitors’ assembly work ended on the ground. The venue-approved rigging team must verify the permitted hanging height, approved suspension points, rated hardware and load requirements before lifting the banner. Exhibitors should never assume that ground assembly authorizes them to suspend the display themselves.

Finished result

Two people completed the frame and graphic assembly in approximately 30 minutes. The finished circular trade show hanging sign measured 4 m in diameter and 1 m high while weighing only about 10 kg. The red, high-contrast graphic created a clear 360-degree brand identifier for visitors approaching from different aisles.

What sizes and shapes can be customized?

QuicklyShow hanging banners are not limited to the dimensions or circular form shown in this case. The size and shape can be developed around the booth layout, brand identity and venue manual.

• Custom diameter, length, width and height
• Circular and oval hanging banners
• Triangle and spindle-shaped structures
• Flower-shaped and other custom silhouettes
• Custom dye-sublimated graphics for different campaigns
• Replacement fabric graphics while retaining the reusable frame

View the complete QuicklyShow hanging banner collection. Buyers comparing geometric formats can also review the square trade show hanging banner and the circular Sky Tube hanging banner.

Why this system is practical for repeat exhibitors

The aluminum framework and stretch-fabric graphic separate into compact components for transport and storage. The frame can be reused at future events when it remains undamaged and is stored correctly, while the graphic can be replaced when the campaign changes. This reduces the need to manufacture an entirely new overhead structure for every exhibition.

The low 10 kg project weight helps control handling effort, but it does not replace venue engineering and rigging rules. Final approval always depends on the event organizer, ceiling system, suspension method and local safety requirements.

Buyer checklist before ordering

• Confirm the booth footprint and desired long-distance sightline.
• Request the venue manual and check whether overhead signs are permitted.
• Confirm maximum hanging height, rigging deadlines and approved contractors.
• Send the required size, preferred shape and print-ready artwork.
• Check what suspension accessories are included and what the venue must supply.
• Allow time for ground assembly, professional inspection and overhead lifting.

Frequently asked questions

Can the hanging banner size be customized?

Yes. Diameter, length, width and height can be adjusted according to the booth design and venue limits.

Which shapes are available?

Common options include circular, oval, triangular, spindle-shaped and flower-shaped designs. Other custom shapes can be reviewed according to structural feasibility.

Is the ground assembly tool-free?

Yes for the configuration shown in this case. Two people connected the aluminum tubes and installed the zipper-closed fabric graphic without additional tools.

Can exhibitors lift the banner themselves?

No. Ground assembly and overhead rigging are different tasks. Venue-approved professional riggers must inspect and lift the structure.

Can the printed graphic be replaced?

Yes. A replacement stretch-fabric graphic can be produced while the reusable frame remains in service, subject to inspection and condition.

Planning a custom hanging banner?

Send QuicklyShow your booth dimensions, preferred shape, event date, venue location and artwork. The team can review the proposed size, printed fabric, packing plan and compatible frame configuration before production. Final suspension design and lifting arrangements must still be confirmed with the venue and its approved rigging provider.
