Quick answer: A QuicklyShow tension fabric display can normally be assembled by one person in about 15 minutes without tools. The system uses labeled, shock-corded aluminum tubes, an Oxford-fabric carry bag, and a wrinkle-resistant stretch-fabric graphic printed by dye sublimation. Straight, curved, and S-shaped versions are available, and the aluminum frame can be reused for more than two years with proper handling and storage.
Project overview
This assembly case demonstrates how a QuicklyShow tension fabric display moves from a compact shipping package to a full-size exhibition backdrop. The product is intended for exhibitors that need a lightweight portable trade show display, quick setup, replaceable graphics, and a reusable frame instead of a disposable booth wall.
The same construction principle supports straight backwalls, gently curved displays, and S-shaped tension fabric backdrops. The right option depends on booth depth, viewing direction, finished width, and the visual effect required.

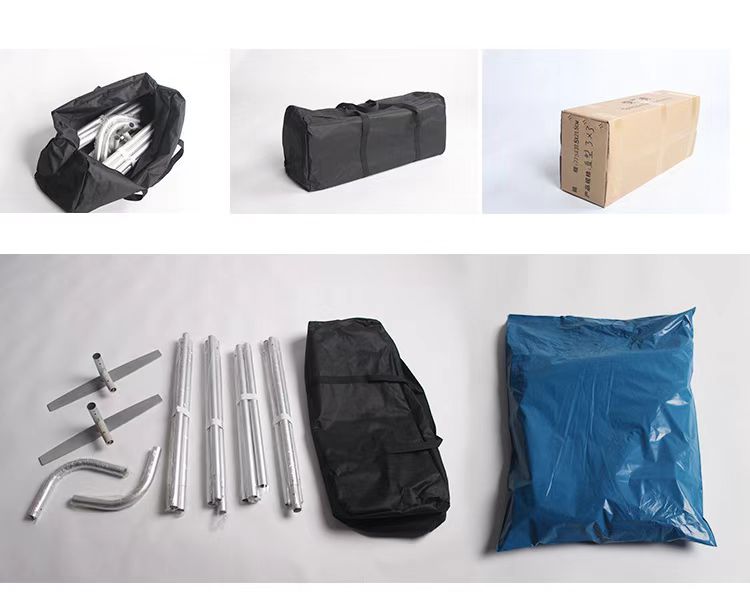

What is included in the package?
The frame components are separated into compact sections for transport. Internal elastic cords keep matching tube sections together and make it easier to identify the correct assembly sequence. Exact package contents depend on the ordered size and frame configuration.

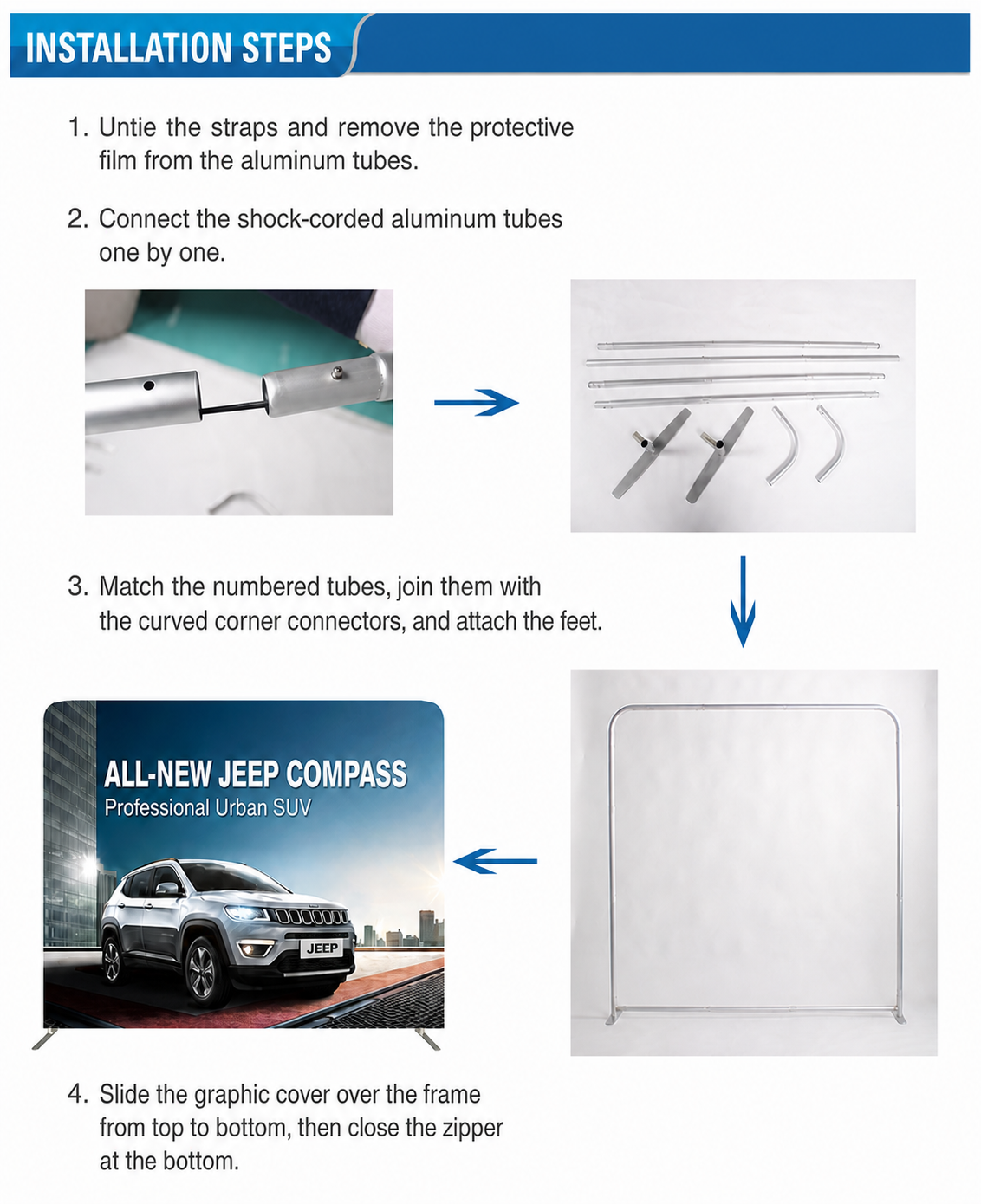

Tool-free installation process
- Open the carry bag, untie the retaining straps, and remove the protective film from the aluminum tubes.
- Connect the shock-corded aluminum tube sections one by one.
- Follow the numbered or lettered markings, attach the curved corner sections and feet, and confirm that each joint is fully seated.
- Stand the completed frame upright and check its stability.
- Pull the stretch-fabric graphic over the frame from top to bottom.
- Close the zipper along the lower edge and smooth the graphic around the corners.
Tested setup reference: one person, approximately 15 minutes, with no additional tools required. A first-time installer may need slightly longer while learning the labeled connection sequence.
Aluminum frame and printed graphic

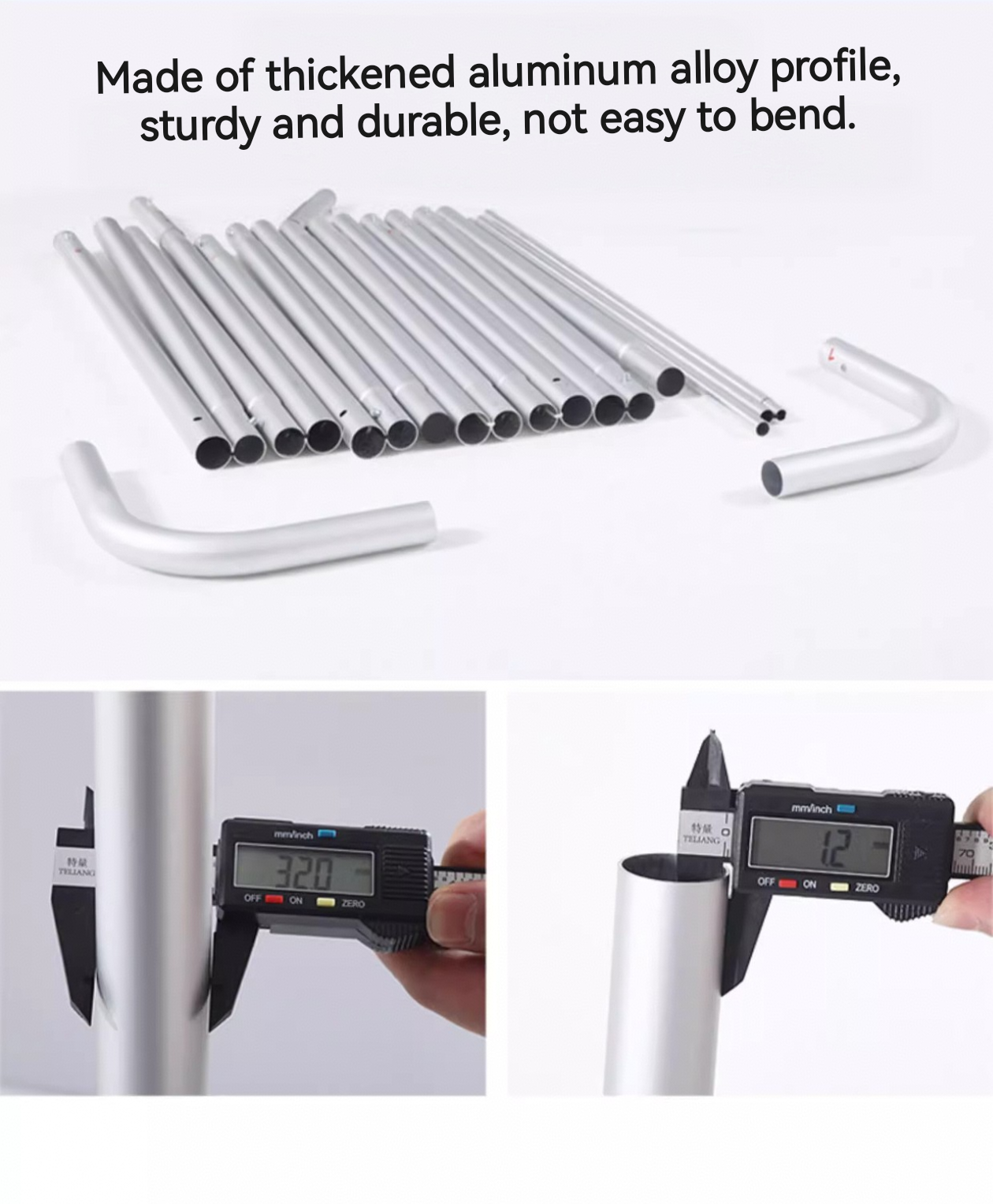

The frame is built from lightweight aluminum tubes that separate into short transport lengths. The image shows an example profile of approximately 32 mm outside diameter and 1.2 mm wall thickness; specifications may vary by model and should be confirmed on the quotation.
The graphic is made from elastic, wrinkle-resistant fabric and produced using high-definition dye-sublimation heat-transfer printing. The fabric cover hides the sectional frame and produces a seamless branded background.
Straight, curved, and S-shaped QuicklyShow options

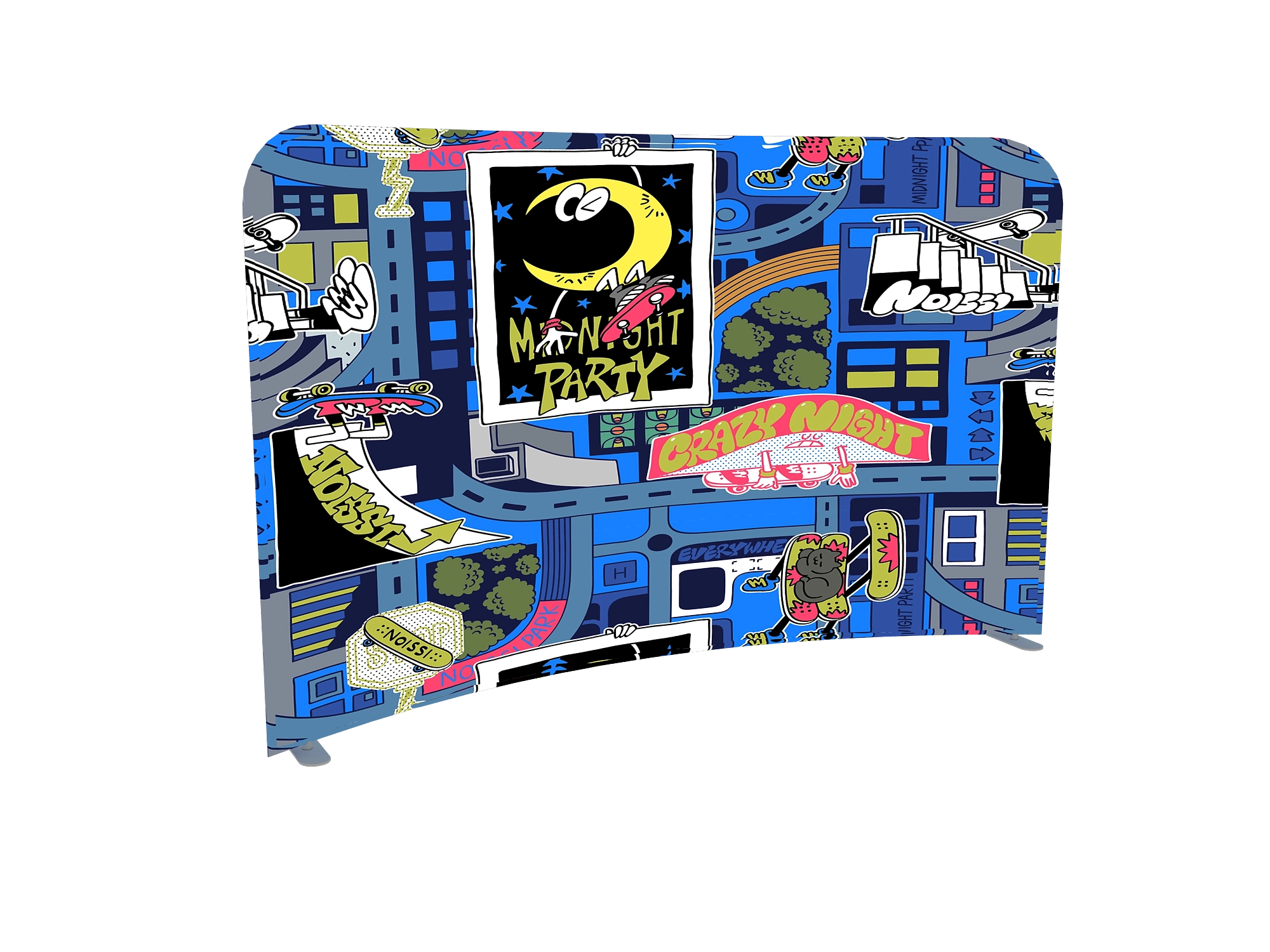

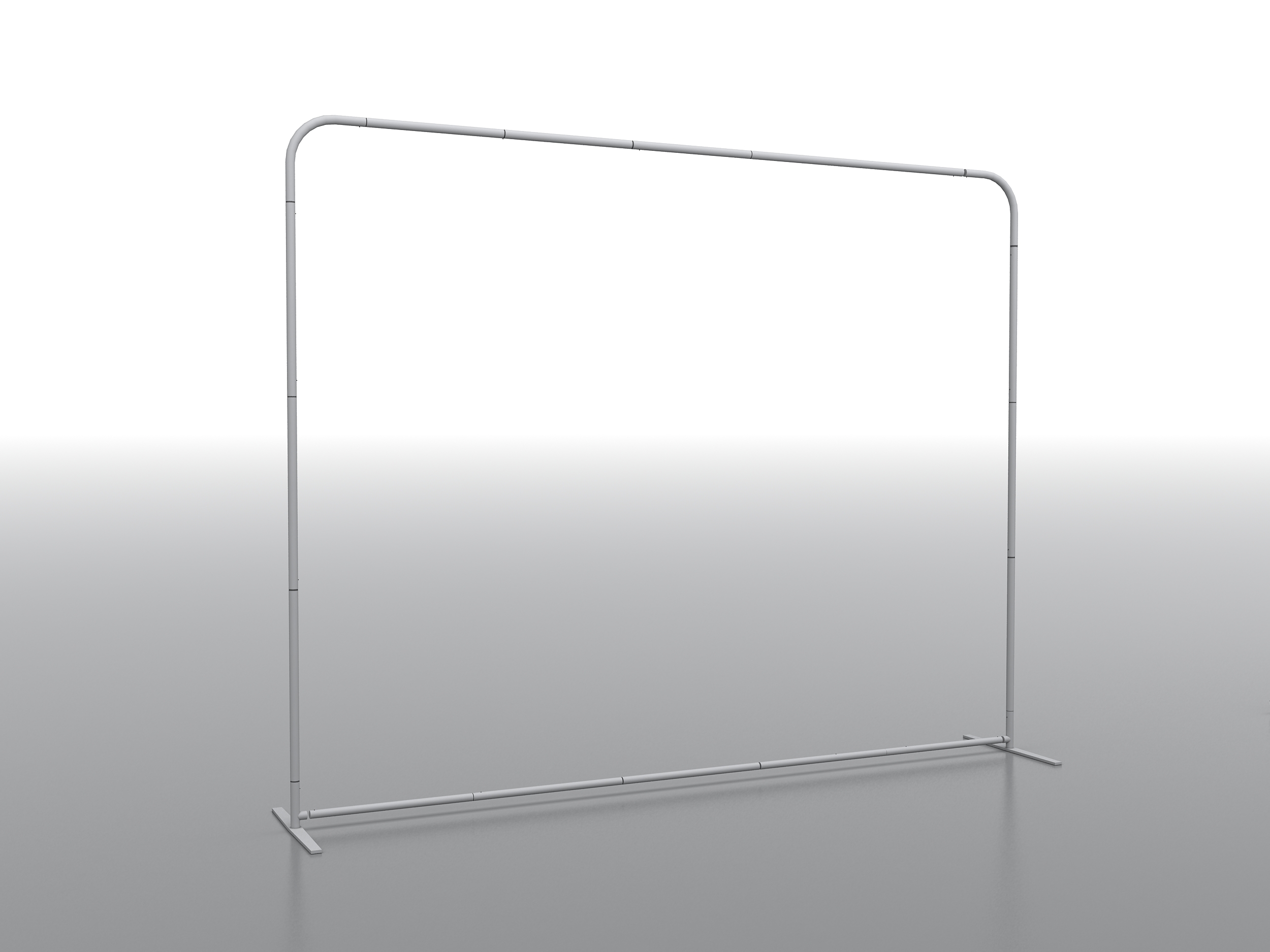

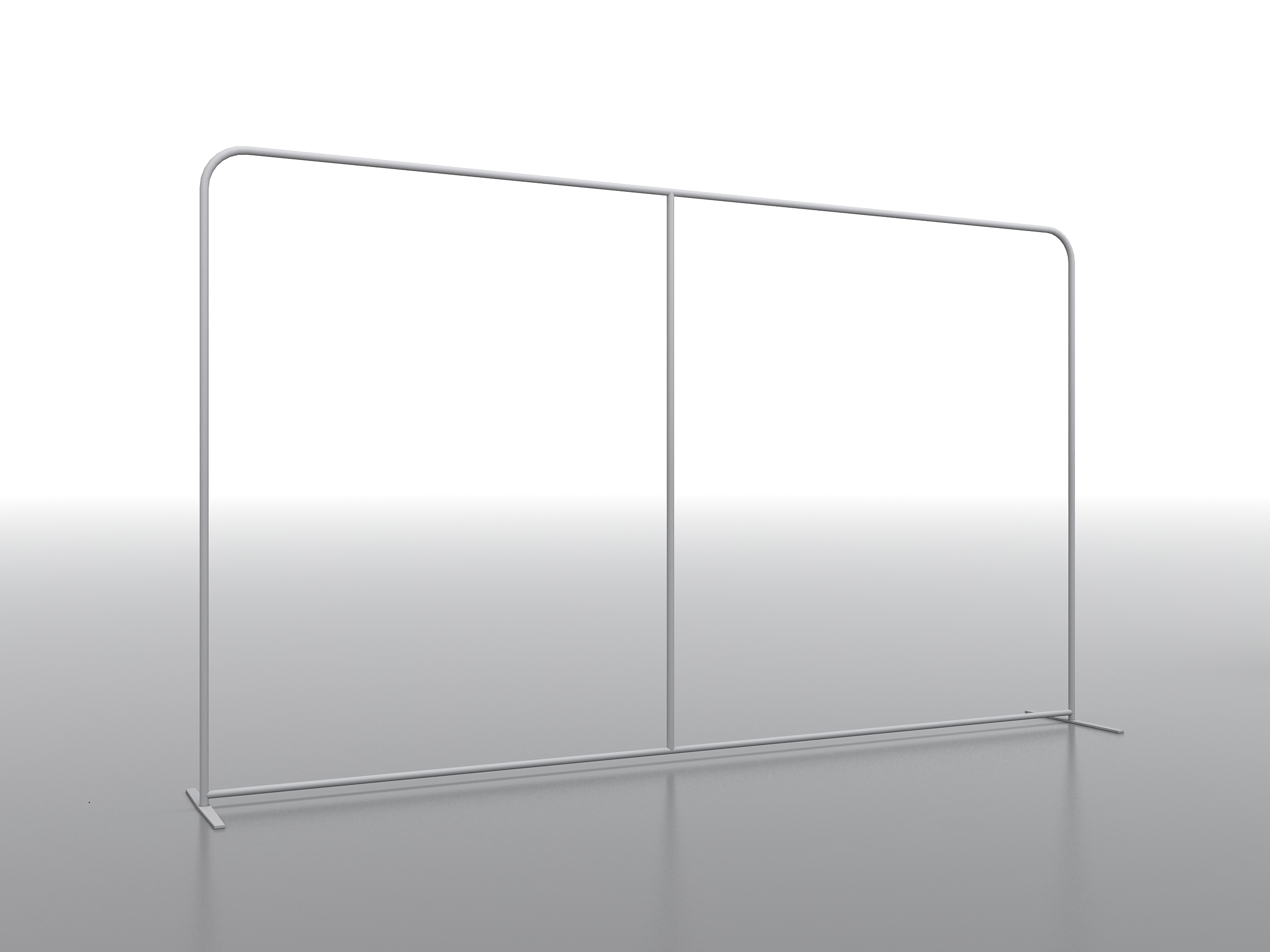

A straight frame is usually the most practical choice for a conventional booth backwall or photo backdrop. Curved frames soften the profile, while an S-shaped frame creates a double curve that can be viewed from multiple directions or used as a freestanding divider.
Size, weight, and packing reference
The following figures distinguish product net weight from packed gross weight. Dimensions are shown as width × height. Custom graphics, accessories, and frame revisions can affect the final shipping data.
| Frame type | Finished size | Net weight | Gross weight | Carton size |
|---|---|---|---|---|
| Straight / curved | 2 × 2 m | 7.5 kg | 9 kg | 77.5 × 31.5 × 21.5 cm |
| Straight / curved | 2.3 × 2.3 m | 9 kg | 11 kg | 77.5 × 31.5 × 21.5 cm |
| Straight / curved | 3 × 3 m | 11 kg | 12.5 kg | 77.5 × 31.5 × 21.5 cm |
| Straight / curved | 4 × 2.3 m | 14 kg | 15.5 kg | 77.5 × 31.5 × 21.5 cm |
| Straight / curved | 5 × 2.3 m | 16.5 kg | 18.5 kg | 77.5 × 32 × 32 cm |
| Straight / curved | 6 × 2.3 m | 18 kg | 20 kg | 77.5 × 32 × 32 cm |
| Straight / curved | 4 × 3 m | 16 kg | 18 kg | 77.5 × 32 × 32 cm |
| Straight / curved | 5 × 3 m | 20.5 kg | 22.5 kg | 77.5 × 32 × 32 cm |
| Straight / curved | 6 × 3 m | 23 kg | 25 kg | 77.5 × 32 × 32 cm |
| S-shaped | 3.14 × 2.3 m | 7.5 kg | 9 kg | 77.5 × 31.5 × 21.5 cm |
| S-shaped | 4 × 2.3 m | 8.5 kg | 10 kg | 77.5 × 31.5 × 21.5 cm |
| S-shaped | 5 × 2.3 m | 9 kg | 11 kg | 77.5 × 32 × 32 cm |
| S-shaped | 6.4 × 2.3 m | 10 kg | 12 kg | 77.5 × 32 × 32 cm |

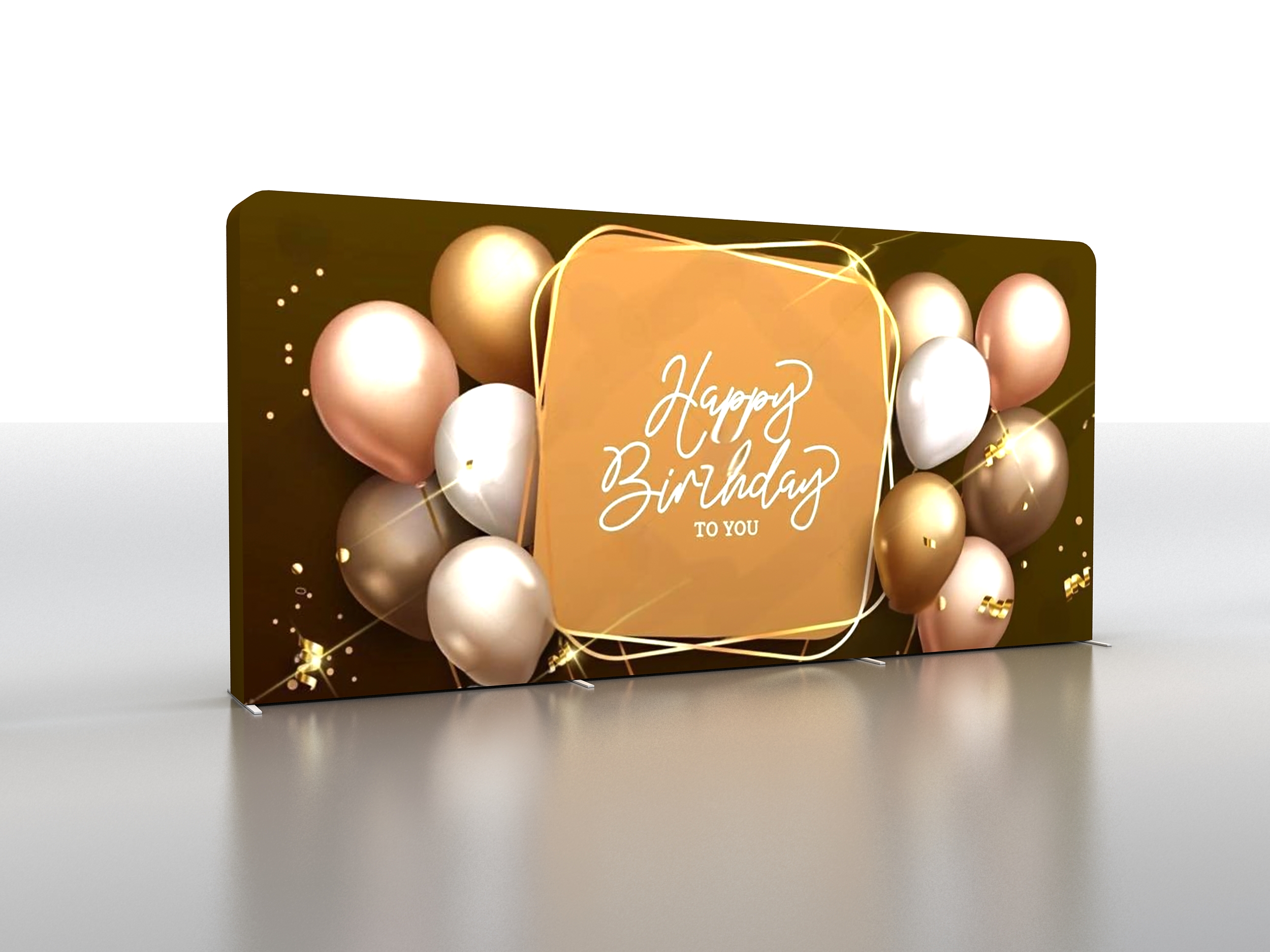

Finished display examples
Reuse, storage, and replacement graphics
Under normal use and storage, the aluminum structure can be reused for more than two years. After dismantling, keep all labeled tube groups together in the Oxford-fabric bag, avoid placing heavy freight on the package, and store the fabric graphic clean and dry.
When branding changes, the exhibitor can replace only the dye-sublimated fabric graphic instead of purchasing the complete frame again, provided the original frame dimensions and shape remain unchanged.
Frequently asked questions
Can one person assemble the display?
Yes. One person can normally assemble a standard QuicklyShow tension fabric display in about 15 minutes after becoming familiar with the labeled components.
Does the frame require tools?
No. The shock-corded tubes, push-button joints, feet, and fitted fabric cover are designed for tool-free assembly.
Can the graphic be replaced?
Yes. A new dye-sublimated stretch-fabric cover can be produced for the same frame size and shape.
Which shape should I choose?
Choose a straight frame for a conventional booth backwall, a curved frame for softer edges, or an S-shaped frame when the display will be seen from multiple directions.
Related QuicklyShow solutions
- S-shape pillow cover tension backdrop display
- 10 × 10 portable modular booth design solution
- 10 × 10 modular tension fabric booth
Get a display recommendation for your booth
Frame shape, finished dimensions, and packing requirements should be confirmed against the actual exhibition space. Submit your display dimensions or booth layout through the QuicklyShow Contact Us page to receive a recommended configuration and quotation.
